Please Be Warned
This thing is a piece of shit and has had to be rebuilt and modified from its original design twice. After waiting almost 7 months and donating over $5,000 to a well-known Microradio Engineer, I received this in an unmarked box with no directions on how to put it together and make it work. Please don't make the same mistake -- as in the real world, check out your sources, even ones with a 'good reputation'. Make sure you find out exactly what your getting, when you'll be getting it, and get detailed instructions as to what you need to do with it when you get it! - Popeye Khan - |
||
 |

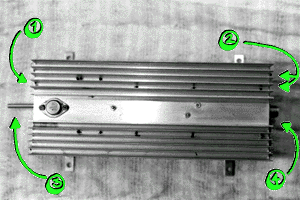

Looking Down,
Cover Closed ( 1 ) Mono Input (RCA) ( 2 ) Power Input ( 3 ) Modulation Gain Pot ( 4 ) Output to Antenna |
|
 |

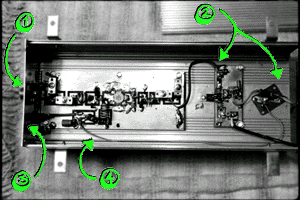

Its Vital Organs
( 1 ) Output to Antenna ( 2 ) Signal from Transmitter ( 3 ) Power Input ( 4 ) Power to Transmitter |
|
 |

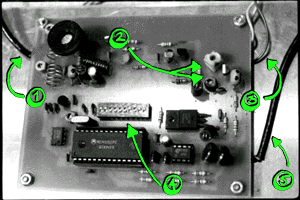

Central Transmitting Unit
( 1 ) Power from Amplifier
( 2 ) Antenna Alignment
( 3 ) Signal From Mix
( 4 ) Binary DIP Switch
(Channel Select)
( 5 ) Power to Gain Pot
|
|
 |

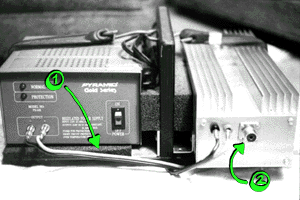

Front View with
Power Source
( 1 ) Power to Transmitter
12.6 Volt A.C. Power Supply
(it can also run off a
car battery)
( 2 ) Out to Antenna
|
|
